                    Tin Roof Trapezoidal Mounting Solution

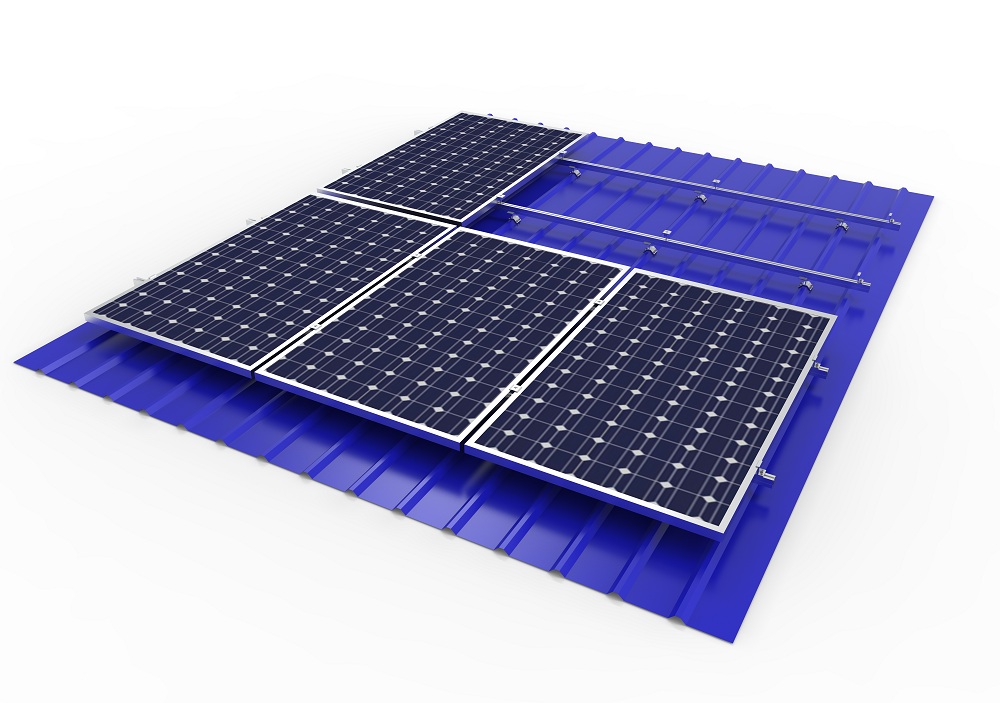

                    Trapezoidal solar mounting system is widely used in large scale warehouse and
workshop tin rooftop. Self-drilling screws are applied to fasten the clamps and the tin
roof, then fasten the solar panels onto the rail with end and mid clamps. This system
is structural efficient and easy installed which is time saving and, cost-efficient and
durable.

                 Specification
SpecificationMax wind capacity:45m/s
Max snow capacity:0.8KN/m2
Span range:0.1-1.8m
Standard length of block:40mm
Design standard:AS/NZS1170, ASCE 7-05, DIN1044
 Performance parameter
Performance parameterInstallation site: tin roof
Main material:AL6005-T5 / SUS304
Fastener material:SUS304
Applicable modules:frame or frameless
Component arrangement: horizontal / vertical
Warranty:10 years

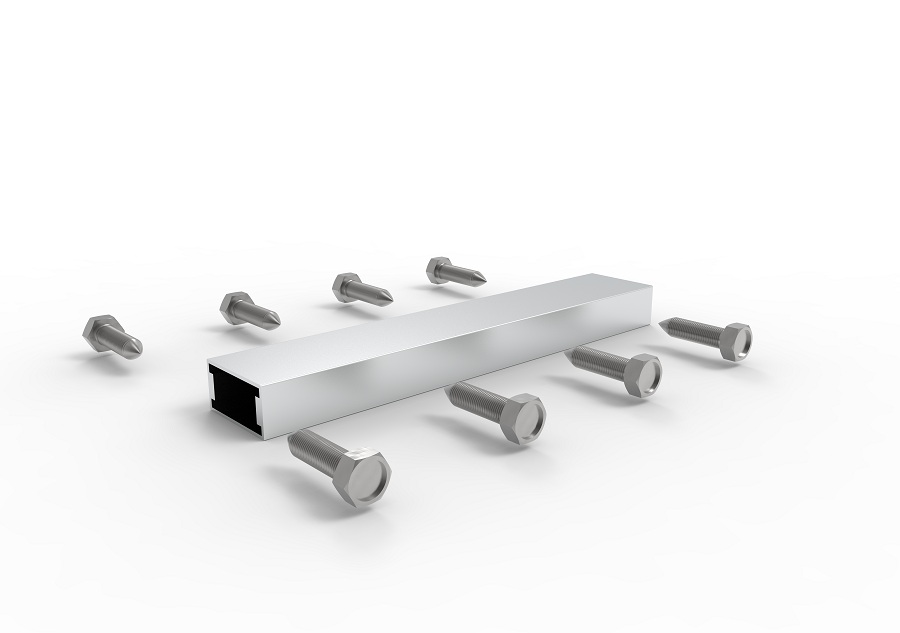

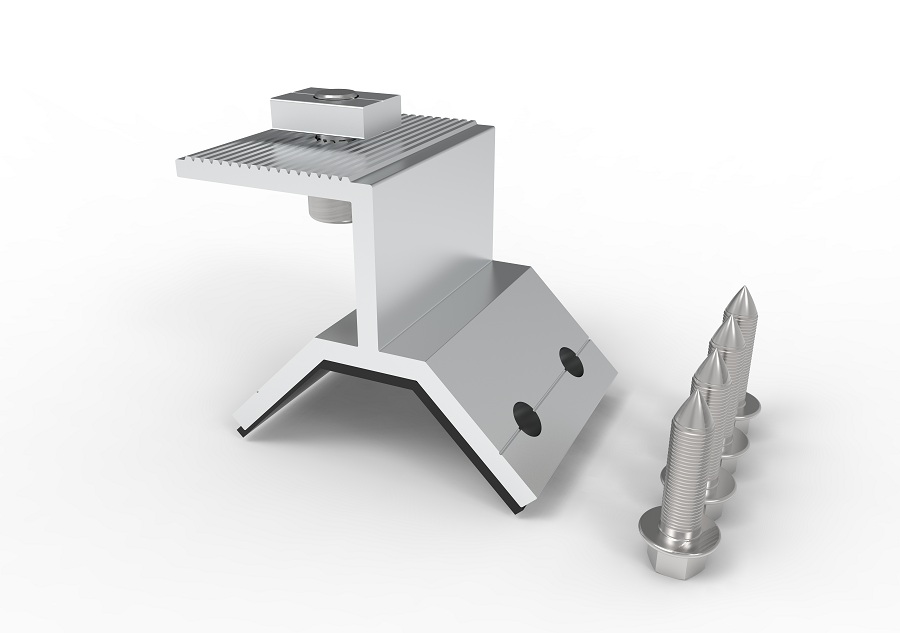

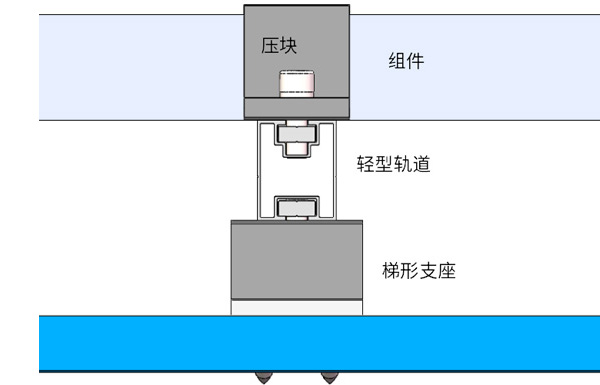

Bracket System Components
Product Features
- Easy installation Well-designed clips can be mounted to the track from any position. The product is pre-installed and shipped from the factory. There is no need to cut and weld on site when installing the bracket. There are fewer on-site installation procedures, which effectively improves the installation efficiency. Well-designed clips can be mounted to the track from any position. The product is pre-installed and shipped from the factory. There is no need to cut and weld on site when installing the bracket. There are fewer on-site installation procedures, which effectively improves the installation efficiency.
- Strong compatibility The bracket system can meet the installation requirements of different specifications of PV modules. At the same time, it is compatible with the different arrangement of components. The bracket system can meet the installation requirements of different specifications of PV modules. At the same time, it is compatible with the different arrangement of components.
- Safe and reliable The system bracket is made of high quality aluminum alloy and stainless steel to prevent corrosion and oxidation. The product can be recycled to reduce environmental pollution. The overall structure fully considers the factors of load bearing, wind resistance, snow resistance, earthquake resistance, etc., and has been calculated and tested to ensure safety and reliability. The system bracket is made of high quality aluminum alloy and stainless steel to prevent corrosion and oxidation. The product can be recycled to reduce environmental pollution. The overall structure fully considers the factors of load bearing, wind resistance, snow resistance, earthquake resistance, etc., and has been calculated and tested to ensure safety and reliability.
Installation instructions
Installation Guide

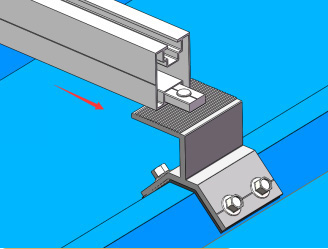

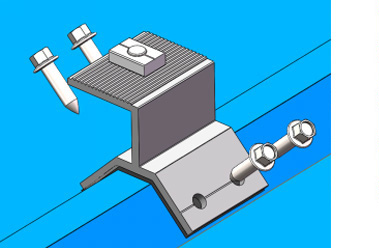

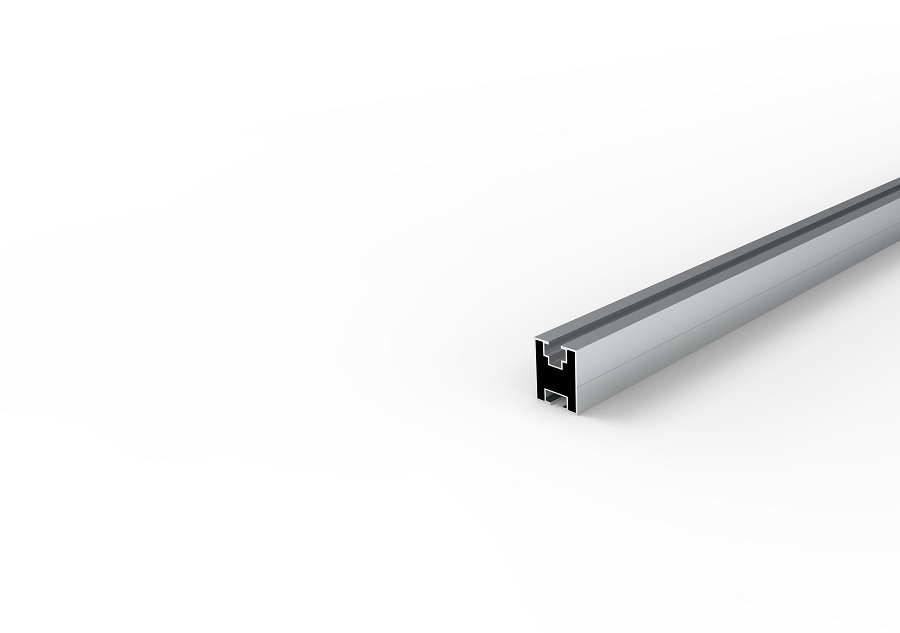

Step 1: fasten the clamp with 4 self-drilling screws Step 2: install the light rail

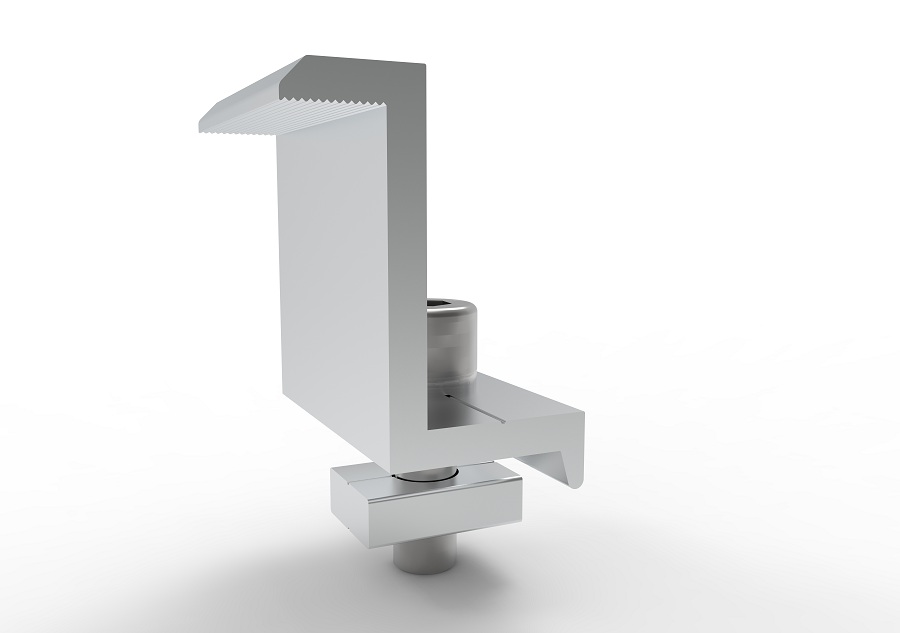

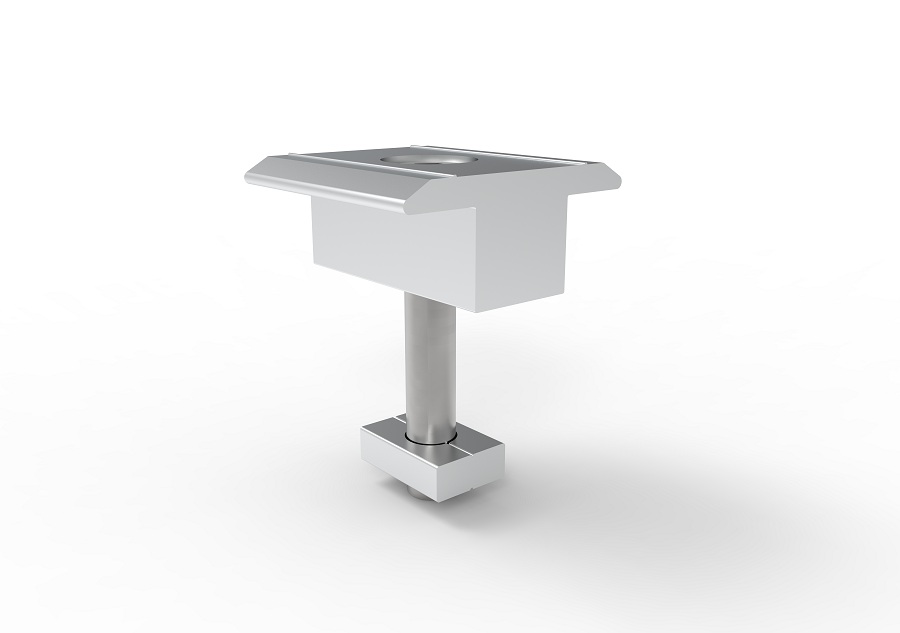

Step 3: slide the end and mid clamps into the rail Step 4: fasten panels with mid and end clamps
